420 Watt Pole Mount Solar Panel Complete Off The Grid System - $750 (Spanish)
condition:
good
QR Code Link to This Post
.
It includes the Panels, the Panel Unistrut Support Framework, The Galvanized Metal Pole, The Pole Base, The Solar Controller, a 200 Amp DC Breaker Panel and wiring, and the Metal Constructed Battery Stand. (Batteries ARE NOT INCLUDED).
And there is a regulator I am tossing in but it has been untested. Got it from a friend so the Regulator is the one thing I am not certain works. BUT ALL THE OTHER COMPONENTS are in great shape and work perfectly.
.
We are selling this as a Complete "TAKE ALL DEAL". If you do not want some of the components you can always post and sell them off at your end.
.
More Detail for each of the Components:
a) Solar Panels:
- There are 4 panels that are 80 watts each. The one larger one in the middle is 100 watts.
- The Four 80 watt panels measure 44" tall x 18" wide.
- The 100 watt panel measures 52" tall x 26" wide.
- The overall width of the upper Solar Panel set up is 101" wide left to right.
.
b ) The Panel Unistrut Frame:
- The frame is easily convertible into different lengths and heights and configurations as its a preferred Unistrut Frame.
- The Frame is Galvanized Metal so it will resist rusting.
- The frame measures 45" wide x 36" tall.
.
c) The Main Support Pole:
- The Pole is a rust resistant heavy gauge Galvanized Steel.
- It comes complete with a 360 degree rotating head mount that can be locked in place with a beefy Set bolt.
- It can also be set to an angle ranging from 90 degrees to approximately 135 degrees.
- The Pole measures 3.5" Diameter x 8' Tall.
.
d) The Pole Base Plate:
- The pole base plate is welded on the pole and measures 8" x 12" x 0.5" thick. It has 4 predrilled holes for securing the pole mount system to a poured cement pillar type base or secured onto a flat concrete or secure surface base.
.
e) Solar Controller:

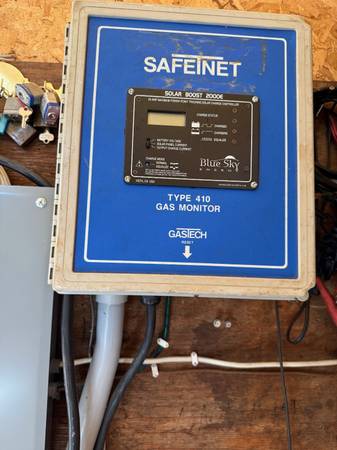

- Brand : Blue Sky Energy SafeTnet Solar Boost 2000E.
- 12 Volt / 25 Amp rating supports wide range of applications
- Multi-stage PWM charge control improves battery performance & life
- Electronic current limit prevents overload or nuisance fuse blow
- LCD digital display monitors PV charge performance
- Durable powder coat finish & conformal coated electronics resist corrosion
- Available temperature compensation further improves battery performance & life
- Fully protected against excess current, temperature, transient voltage & polarity
- With a Type 410 Gas Monitor
- 25 Amp maximum power point tracking solar charge controller
- The gauge measures and displays using a selector switch, Battery Voltage / Solar Panel Current/ Output Charge Current
- There is also a charge status Red LED light indicating "charging" status or "charged" status.
- Also has a charge mode function for Normal or Equalize
More About the Blue Sky SafeTnet Solar Controller:
Blue Sky Solar Boost MPPT Charge Controllers use Maximum Power Point Tracking technology to improve charge current up to 30% or more.
The Solar Boost 2000E charge controller uses Maximum Power Point Tracking (MPPT) technology allows to increase charge current up to 30% or more compared to conventional charge controllers. Don’t waste money by throwing PV power away! Get the power you paid for with a Solar Boost charge controller.
The Solar Boost 2000E provides a precision Multi-stage Pulse Width Modulation (PWM) charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less battery maintenance. An equalize function is also included to periodically condition liquid electrolyte lead-acid batteries.
A built in LCD digital display monitors solar charge performance.The display shows battery voltage, solar panel current and output charge current. You can actually see current boost working by knowing the difference between solar panel current and output charge current. A charge status LED indicates the present charge mode, and shows when the battery has become fully charge.
.
f) Dedicated 200 Amp DC Breaker Panel:
- This is a 200 amp disconnect panel for use with the Solar Panel system.
- It comes with 12 feet of 2/0 SO Type Cable from the battery stand to the breaker panel.
.
g) Custom made Battery Stand:
- Sturdy Heavy gauge Black Painted Angle Iron battery Stand
- Includes the Two Lead Trays on each level to contain and neutralize andy potential or accidental battery fluid leaks or spills. Or in the event a battery freezes then these lead catch trays come in very handy.
- The battery stand measures 44" wide x 14" deep x 40" tall.
- You can use vehicle style batteries or Tow Motor crate style batteries with this system.
(The batteries in the picture are NOT Included).
Cost:
- The 5 Solar Panels were around $1300.00 new when we bought them.
- The 200 Amp Disconnect panel and breaker and all the SO 2/0 gauge wire is a value of around $250.00 +
- The Solar panel Unistrut Framework alone is around a $500.00 to $600.00 value.
- The Battery Stand with lead trays is a value of around $200.00.
- The Pole Mast and Base is a value of around $300.00
So the total value of everything here when new was approx. $2600.00 to $3300.00 or more.
I am selling this whole Solar panel Pole Mounted System with all add on accessories for $750.00 total.
This whole system is located at Lang Lake/Kecil Lake off Highway 17 approx. 13kms (20minutes) North of Spanish, ON
If you pick up you will need a Pick Up Truck, or a trailer. The Pole is 8 feet long and cannot be shortened as it sits. You will need moving blankets to protect the panels when loaded and any tie down straps for securing the load.
Local area delivery is possible. Gas and Time will need to be covered ok. Delivery to as far as Sudbury, Elliot Lake to Manitoulin Island to Thessalon ON is all possible. If you care to cover some gas and time.
I can also meet you at the highway #17 as well but again would like some money towards loading it all up and driving from the lake to the highway than back.
I can also get this down to Waterloo or Walkerton area if we have to. Again gas and travel will be added.
